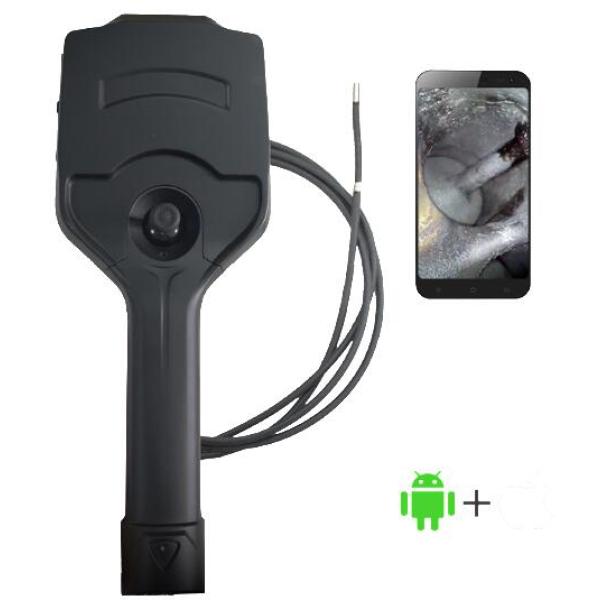

T-wifi Industrial Videoscope

T-wifi Industrial Videoscope

T-wifi Industrial Videoscope
T-wifi Industrial VideoscopeT-wifi Industrial VideoscopeT-wifi Industrial Videoscope
CategoriesDigital Endoscopes
AlbumView larger image
BrandJEET
ModelT-wifi
Download DOC
Update Time2020-12-02
Detail Information
Multifunctional Insert Tube
Articulation
360° all-way articulation, damping type positioning design, precise articulation locking technology, make the detection more accurate and efficient.
Features
Wear Resistant Tube
5 layers of tungsten-braided tube; Wear resistance; 20 times better than ordinary probe.
Bending
The maximum bending angle is up to 190°
Working Time
Original dual battery design, 8 hours working time, real-time battery indication.
Illuminance
With super bright ceramic LED, the illuminance can reach to 1,000,000 Lx.







3.8mm 360° articulation
6mm front view 360° articulation
6mm sideview 360° articulation
6mm front view & sideview dual lens 360° articulation
Packaging & Accessories
Multi-functional magnetic stand; Practical probe accessories to meet a variety of inspection requirements.
Quality Assurance
All products are complied with RoHS, CE and ISO standard and passed testing for temperature, waterproof, drop, vibration and pressure. Our vision is providing high-quality professional inspection instrument to every customer.
JEET Wifi Industrial Videoscope Parameters

Tube   System

Probe Diameter(mm)

Φ3.8mm

Φ6.0mm

Camera Pixels

1,000,000


DOF

5-80mm/5-150mm/10-100mm/50mm-

FOV

120°



Light Source

LED (optional: optic fiber)

Illuminance

It can be up to 20,000 Lx

It can be up to 100,000 Lx

Tube Length

1.0m/2.0m/3.0m/4.0m/5.0m

(customized for other length)

1.0m/2.0m/3.0m/4.0m/5.0m/6.0m/7.0m/8.0m

(customized for other length)

Protecting   Device of Durability

42mm   buffer protection device between tube and handle

Articulation

360° joystick control

Bending   Angle

Maximun:190°8m tube:100°

Probe Positioning

Damping positioning (optional:   articulation lock device)

Monitor   System







Language

English / French / German / Italian / Spanish / Portuguese /   Japanese / Traditional Chinese / Simplified Chinese / Russian / Ukrainian /   Korean /Polish / Latvian

Outer Case Material

Anti-fall engineering alloy material

IP Level

Probe/tube: IP67

Temperature Indication

High temperature alarm(optional

Structure

Hand-held integrated design

Image/Video Format

JPEG/MOV

Data Port

HDMI   video output, Micro USB port

Working Time

≥8h

Zoom   In/Out

4X

Battery Capacity

3.7V3200mAh×2

Power Charge

DC5Vmaximum current: 1A

Weight

0.55Kg-0.8Kg

Compatibility

Interchangeable   monitor and tube with different diameters

Accessories

Storage

Standard TF card: 16G, Maximum: 32G

Power Supply

Detachable lithium batteries

Standard Configuration

Instrument case/   videoscope/ battery card reader/ TF card/charger/ USB cable/   manual
